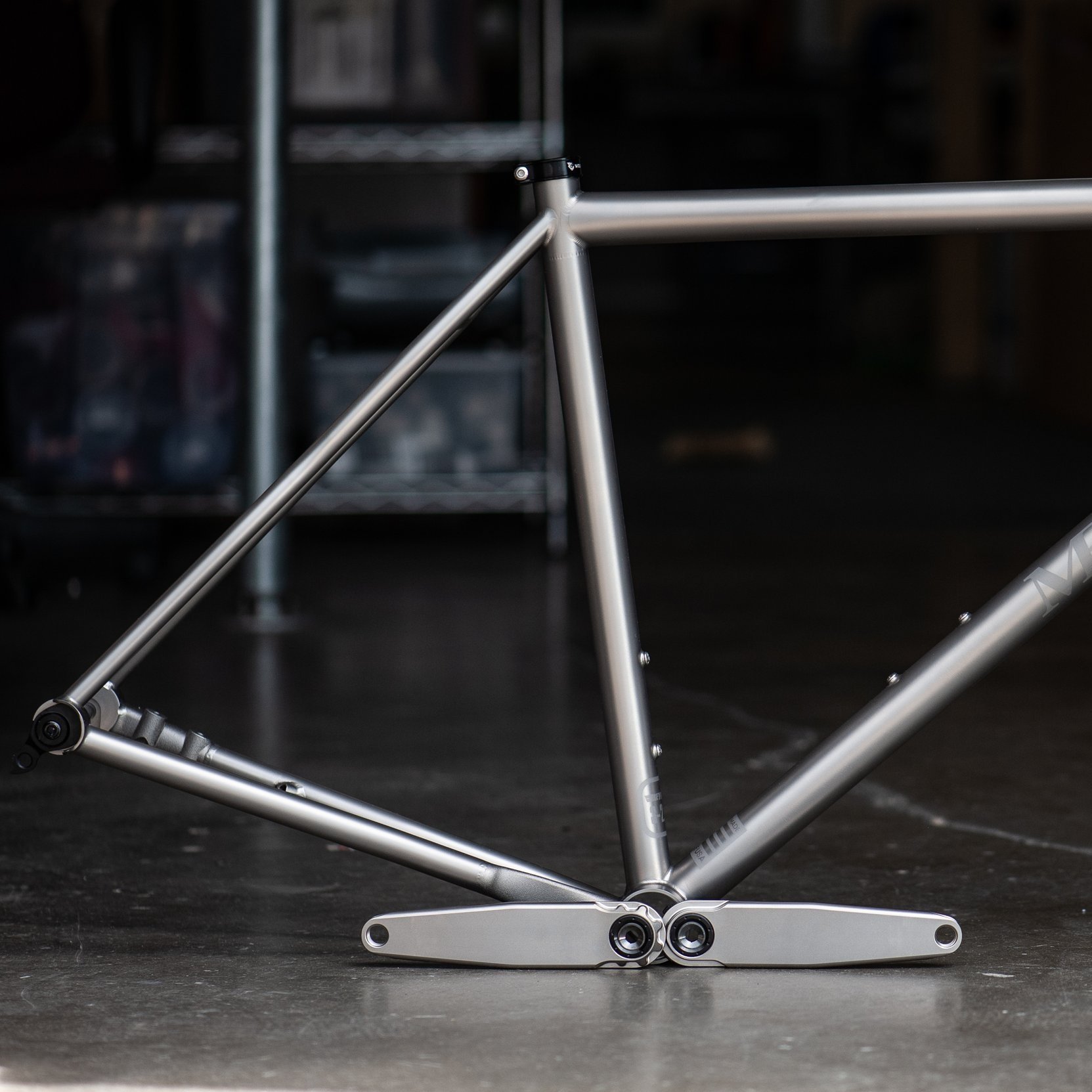

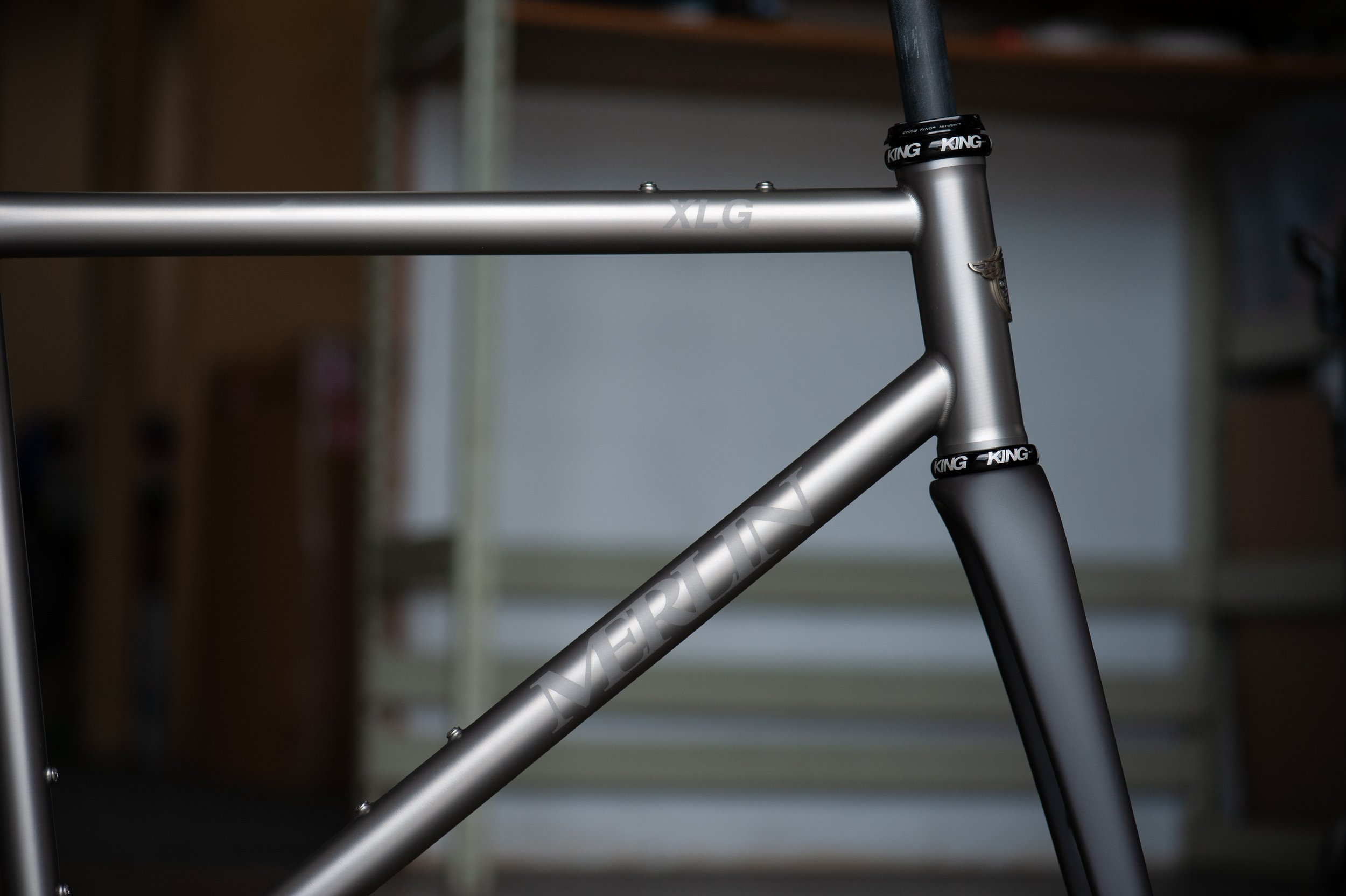

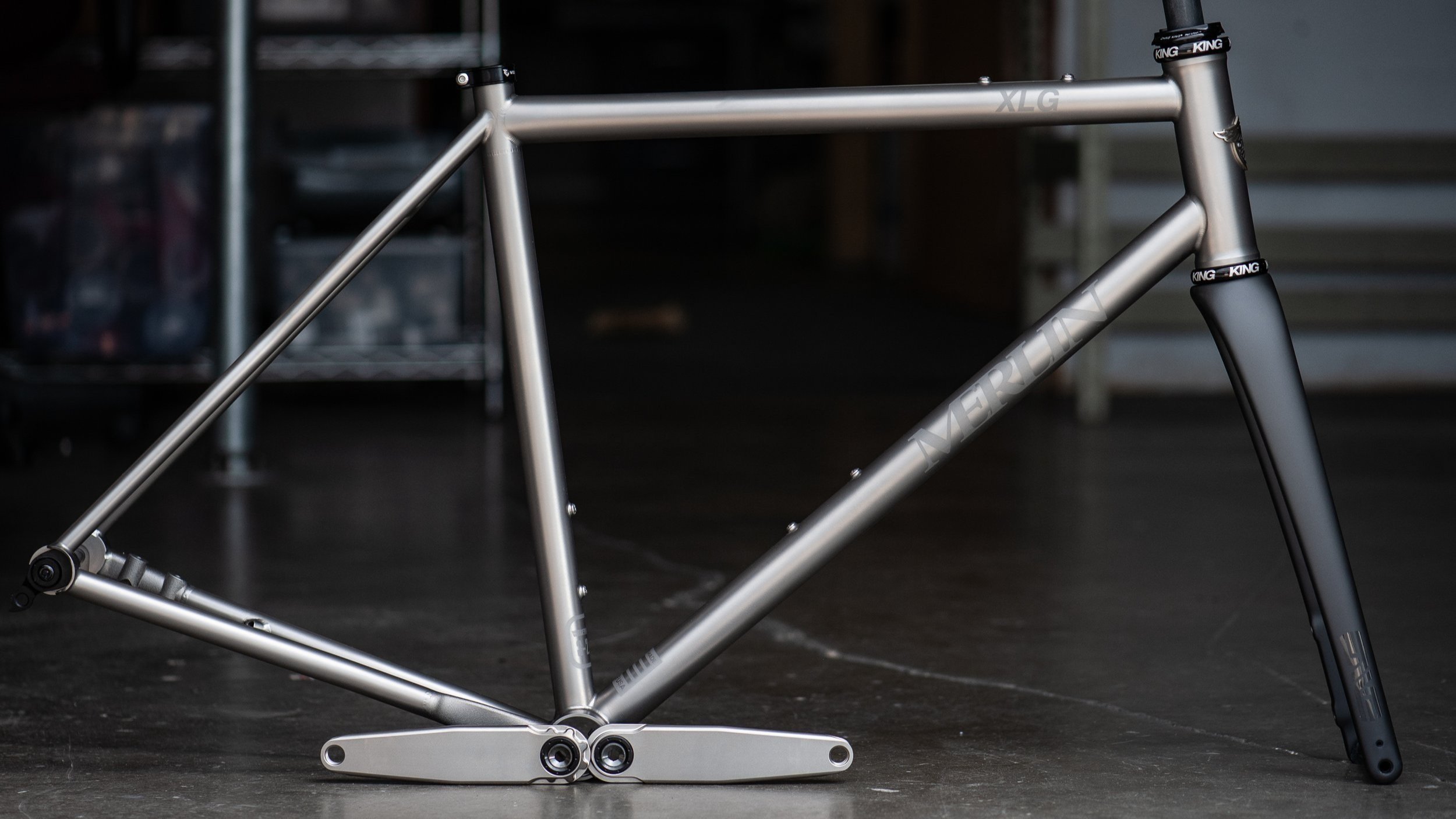

The Sandstone 40 is a modern allroad bike, equally capable on road and gravel. With Merlin’s custom 3D printed titanium chainstay yoke, the SS40 is capable of clearing a 700x40mm tire with short 420mm chainstays. The bike is designed to accommodate road drivetrains, giving you a narrow Q-factor and road gearing. The Sandstone 40 is the most versatile bike in our lineup: set it up as a lightweight and efficient endurance road bike or a fast and racy gravel bike.

FRAME ONLY: DOES NOT INCLUDE ANY COMPONENTS SHOWN IN PHOTOS

• Size-Specific, precision drawn cold worked Reynolds Double Butted tubing, custom spec'd seat and chainstays based on design

• Perfectly sequenced double pass welds to create the most accurate and strongest joints in the industry

• American-manufactured 44mm headtube

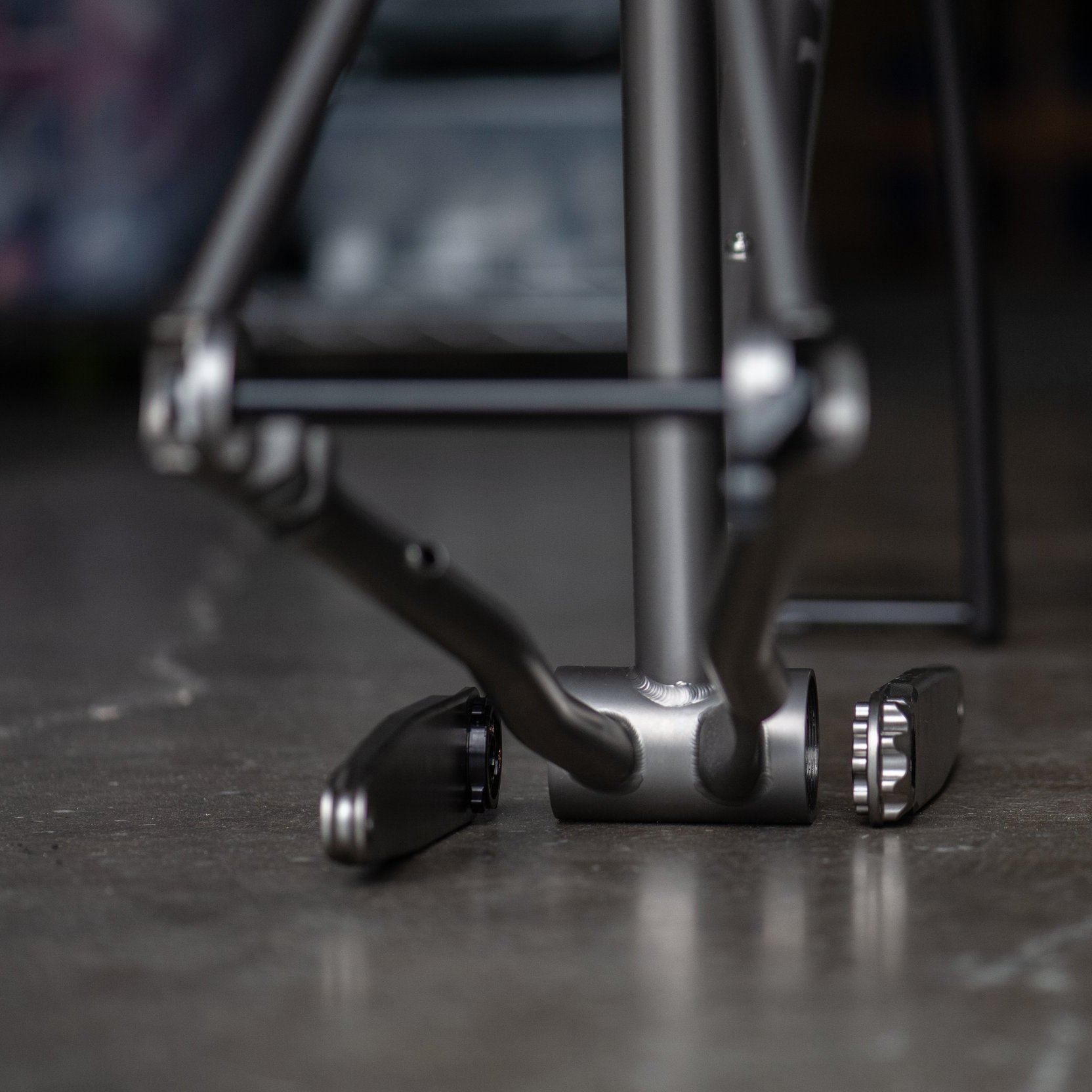

• Bottom Bracket: T47

• Axle standards: 142x12 thru axle

• Brake stock options: Flat Mount Disc

• Two standard bottle mount locations (INCLUDES TOP TUBE MOUNTS)

• Handcrafted Merlin Eagle Head Badge

• FULLY INTERNAL BRAKE ROUTING.  WIRELESS DRIVETRAIN SETUP.

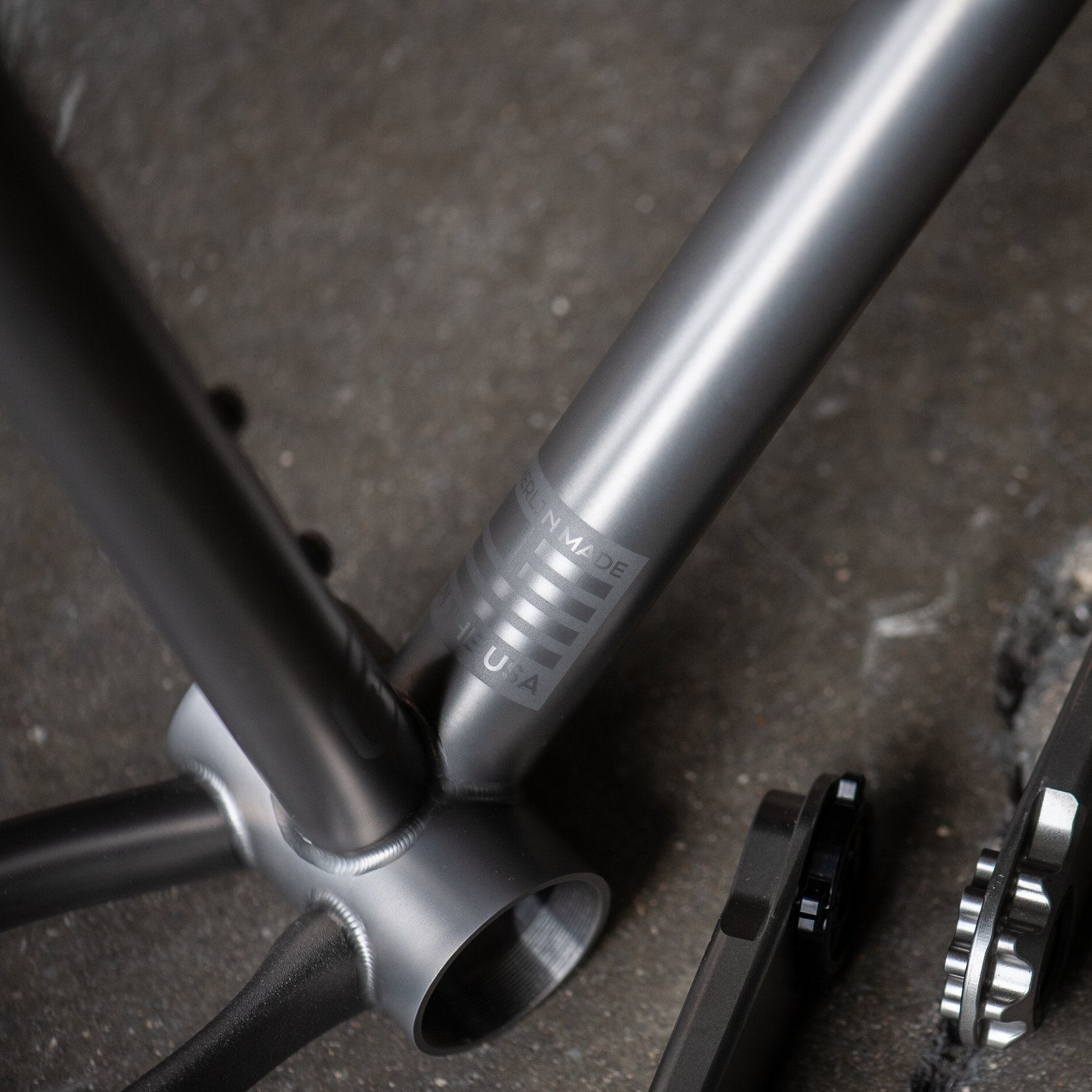

  Hand Made in the USA
